4CH 1080P HDD Mobile DVR BD-437HD

This is a 4 channel 1080P Mobile DVR, works with max. 2TB HDD memory. Support 4G/GPS. we offer CMS client system for free.
  • Details

Features:

> Max. 2TB HDD MEMORY

> 4CH 1080P(1920x1080) and 720P (1080X720)

> H.264 Compression

> Aviation connector

> 25f/s each channel

> 4G/GPS function available

Front panel of DVR


Lockable front panel to protect HDD


Rear panel of DVR


Standard version Accessories:


DVR dimension



Professional player for free


Full screen of each channel


Successful solutions for big vehicles

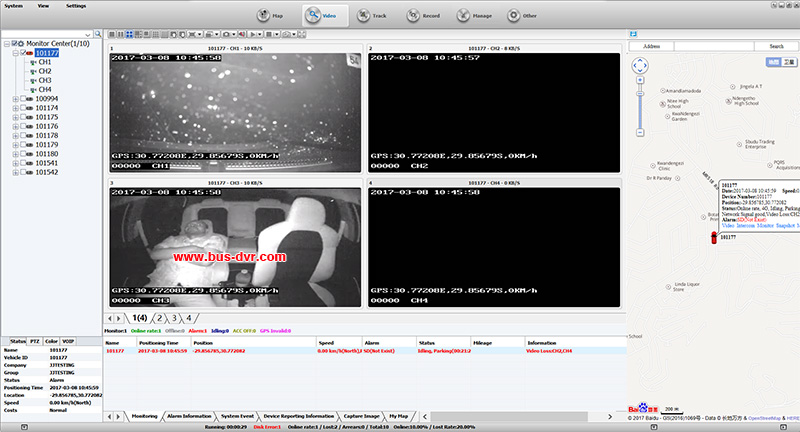

4G and GPS for remote view and tracking, CMS software free for use


Remote view on IOS and Android Mobile Phone


Panic button for emergency alarm (need to by customized)



Specifications:

Items

Parameters

Specifications



System

Language

Chinese/English/Russian (OEM)

Operation Menu

Graphical User interfaceOSD menu

Password

Users Password/ Administrator Password







Video

Video input

4-CH video input   1.0Vp-p75Ω

Video output

1-CH video COMPOSITE output 1.0Vp-p75Ω

Video Display

1 channel or synchronous 4 channels

Video Singal

PALNTSC

Video Compression

H.264 Main profile 75fps D1/s

Audio

Audio input

4-ch Audio input

Audio output

1-ch Audio output

Recording mode

Audio & Video sync Recording

Image processing & storage



Resolution

1080p/720p

Video stream Standard

ISO14496-10

Video bit rate

CIF: 1536Kbps ~ 128Kbps8 levels optional. Highest:1 level

HD1: 2048Kbps ~ 380Kbps8 levels optional. Highest:1 level

D1:  2048Kbps ~ 400Kbps8 levels optional. Highest:1 level

Audio Bit rate

8KB/s

Frame

25f/s each channel.

Alarm

Alarm input

4 channel

Communication Interface

RS232 Interface

Customized

Software

Analysis of PC playback

Playback Recording on PCand analyses the vehicle recording info.

Software Upgrade

Support
