Wireless Monitor and Camera Kit

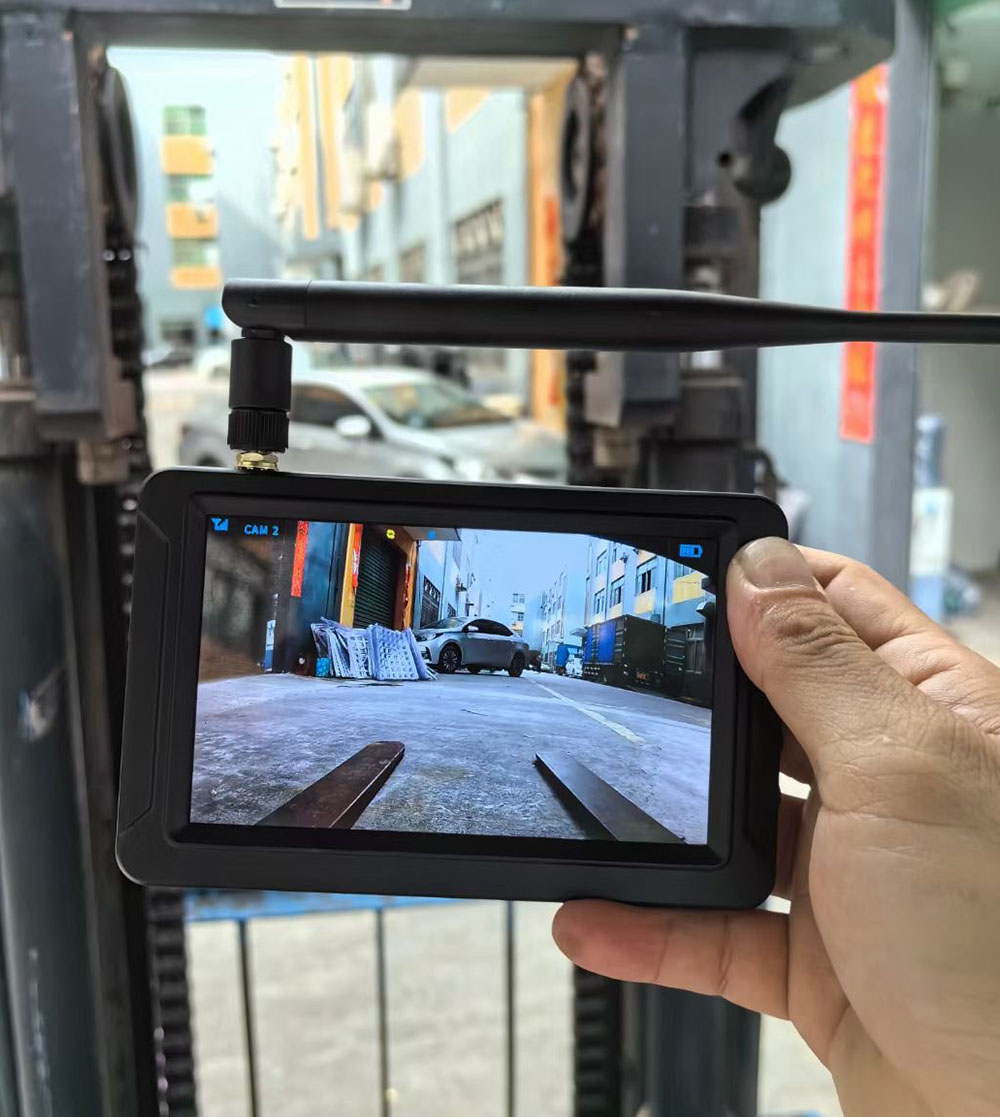

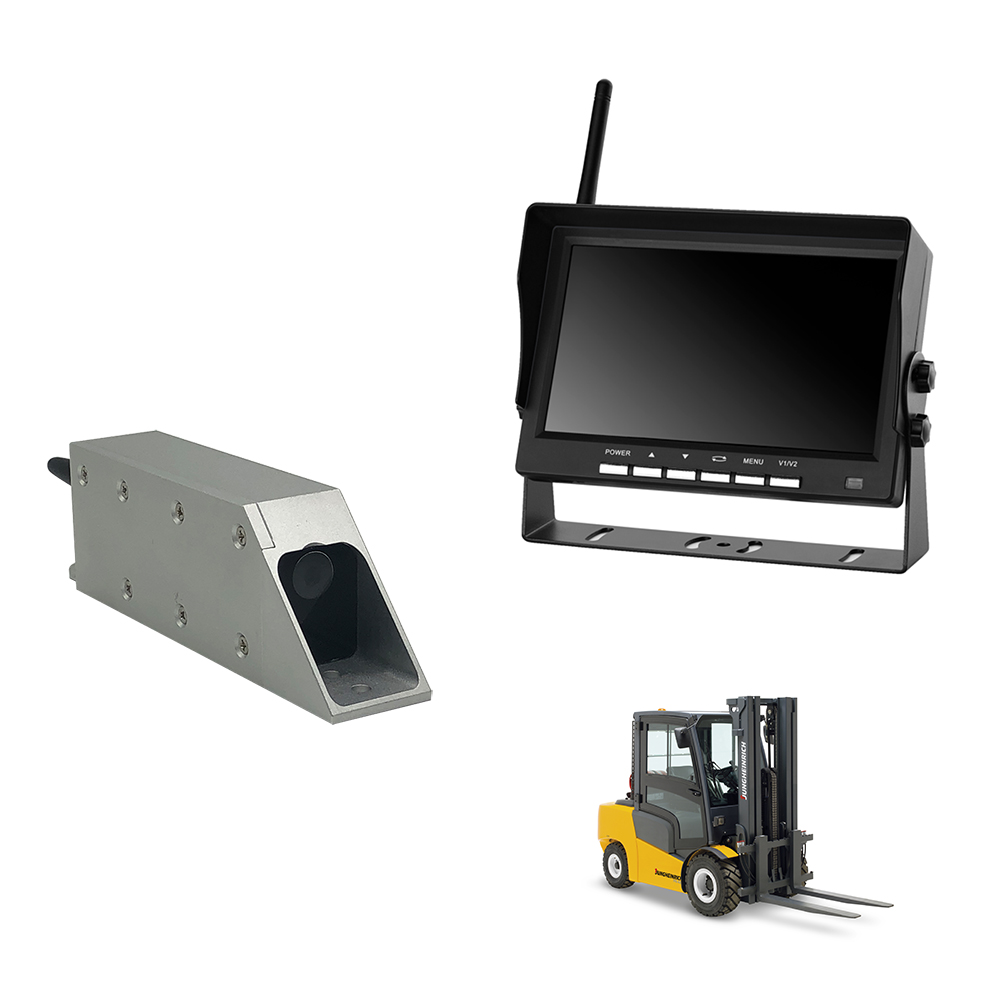

Forklift Wireless Camera Kit with 7inch 10inch Monitor DVR FKC-7001-N
- Details
1. 7inch Monitor(10.1inch optional)
2. 2.4G wireless video T/R(Max. 4 cameras)
3. SD card recording
4. 720P Recording resolution
5. 720P AHD camera,magnet type optional
6. 9V-36V power input
7. 5V power input to Camera
8. Magnet power bank for camera (optional)

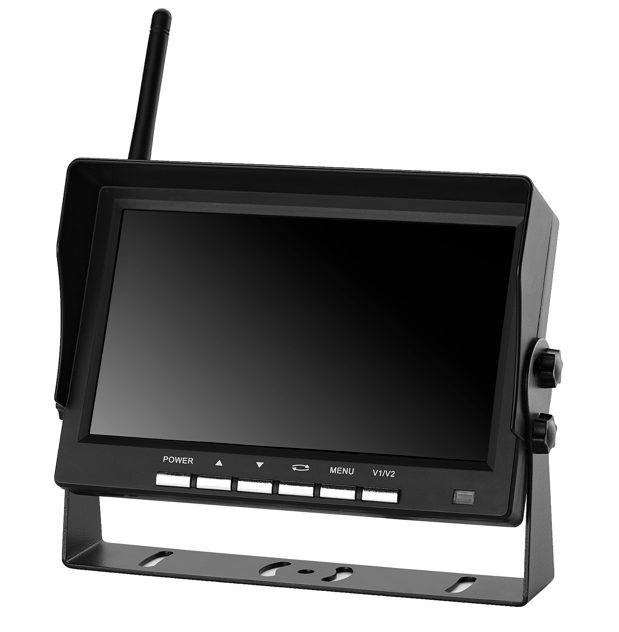

7inch or 10.1inch monitor optional. Function same

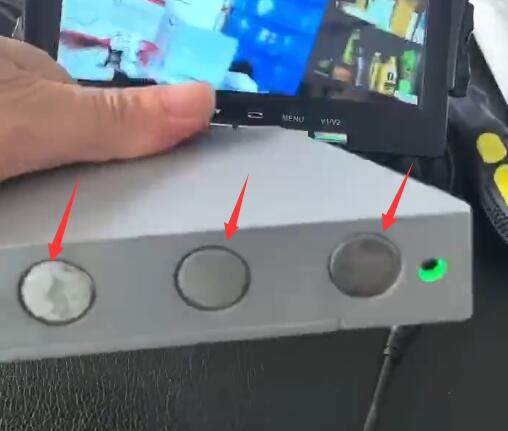

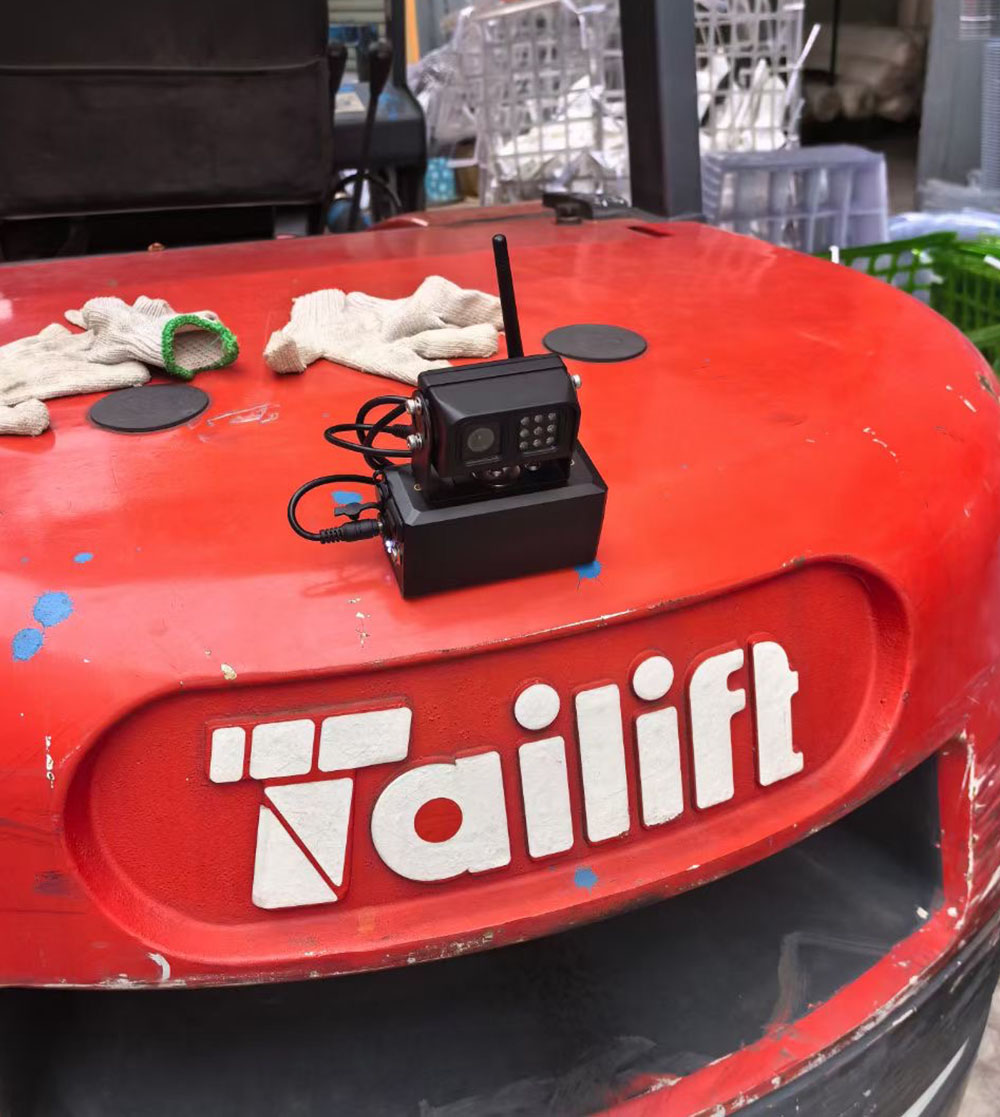

Magnet type camera

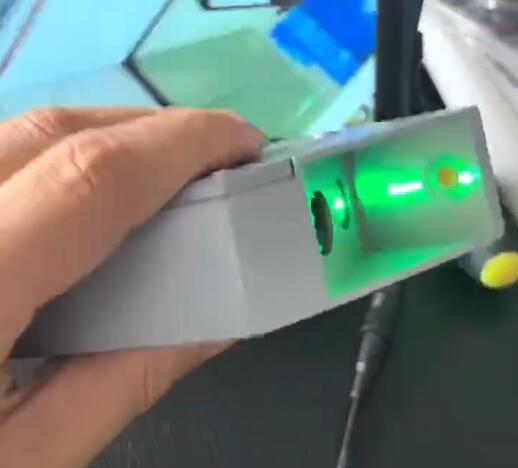

Camera with Laser

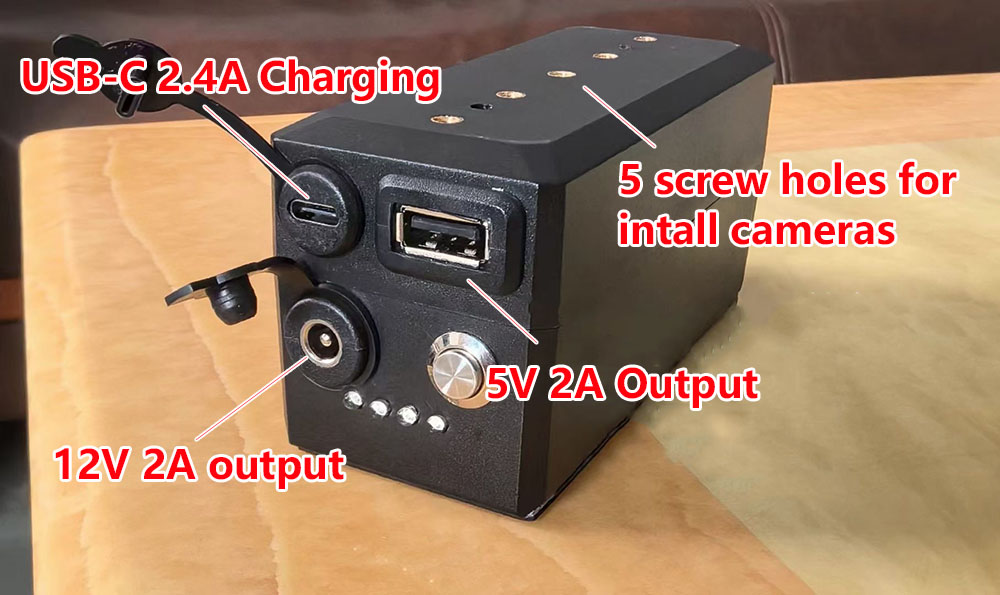

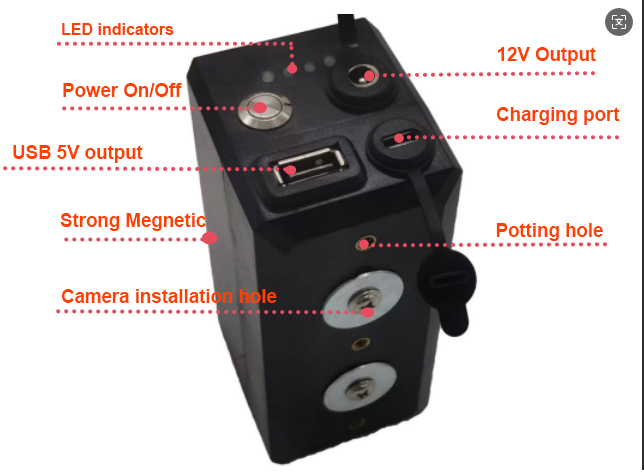

Portable power bank (optional)

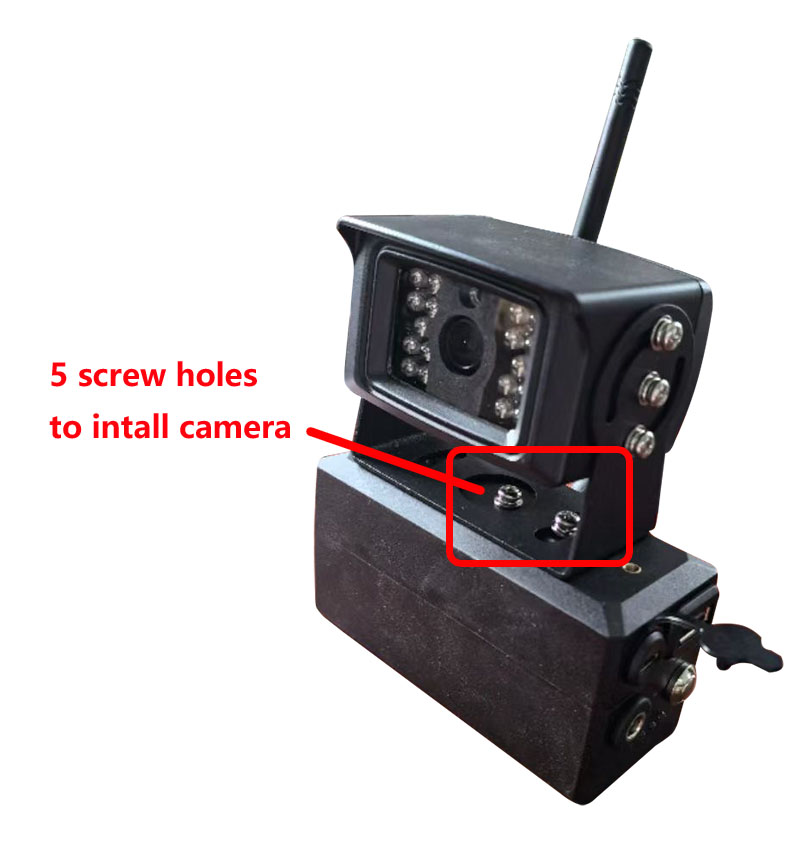

Camera can be fixed on power bank by screws

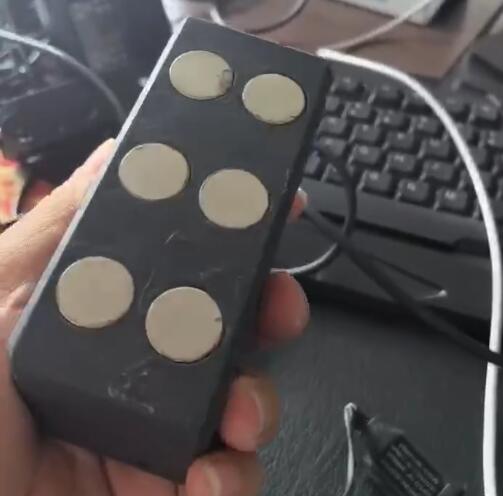

with strong magnet
Sucked a power source over 6KG from ground.

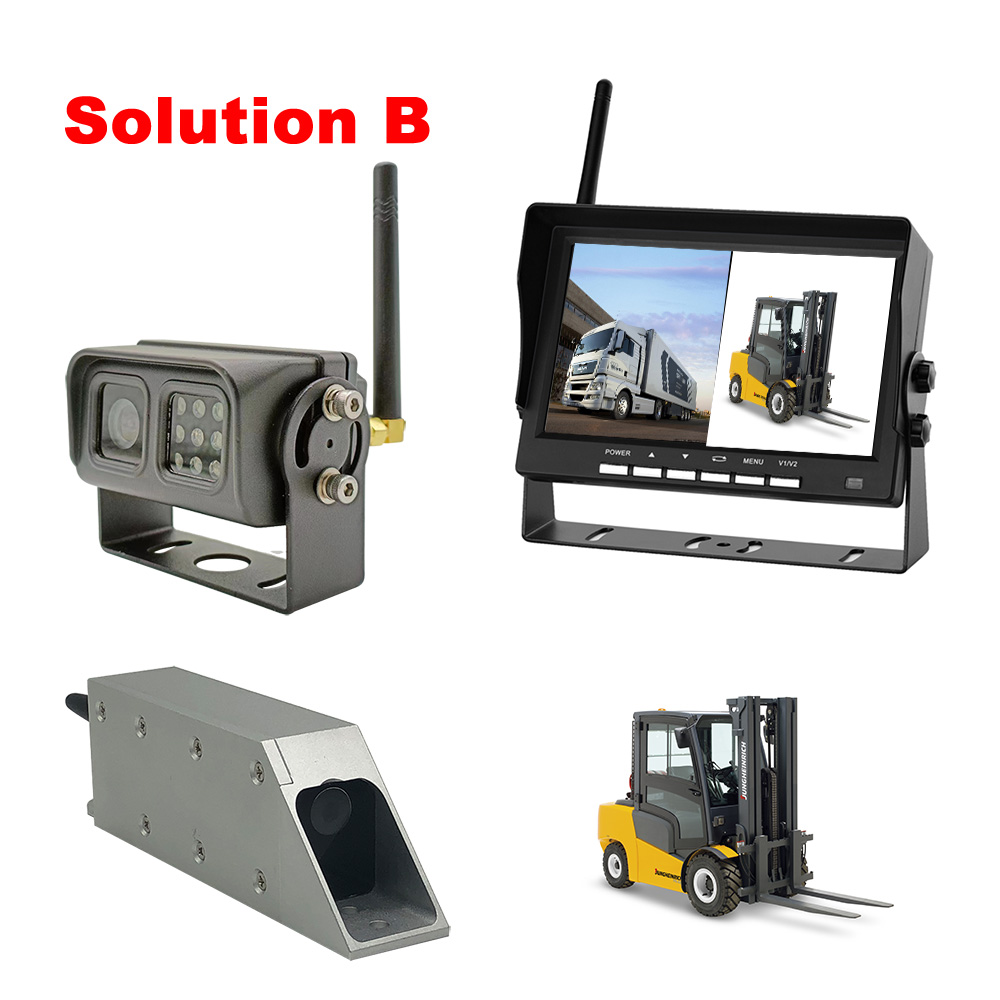

2 cameras solution available
Specifications:
|
Device |
Item |
Data |
|
Monitor |
LCD screen |
7inch/10.1inch digital screen |
|
Working frequency |
2400-2483.5MHZ |
|
|
Receive Sensitive |
≤-86dBm |
|
|
Resolution |
1024x(RGB)x600 |
|
|
Visable View angle |
L/R: 85/85 ; U/D 85/85 |
|
|
LED brightness |
600cd/㎡ |
|
|
Contrast |
800:1 |
|
|
Working range |
200m in the open |
|
|
Power input |
8-32V |
|
|
Working Temp. |
-20℃-70℃ |
|
|

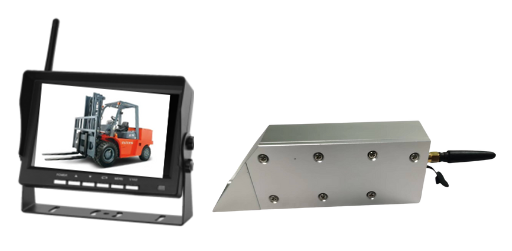

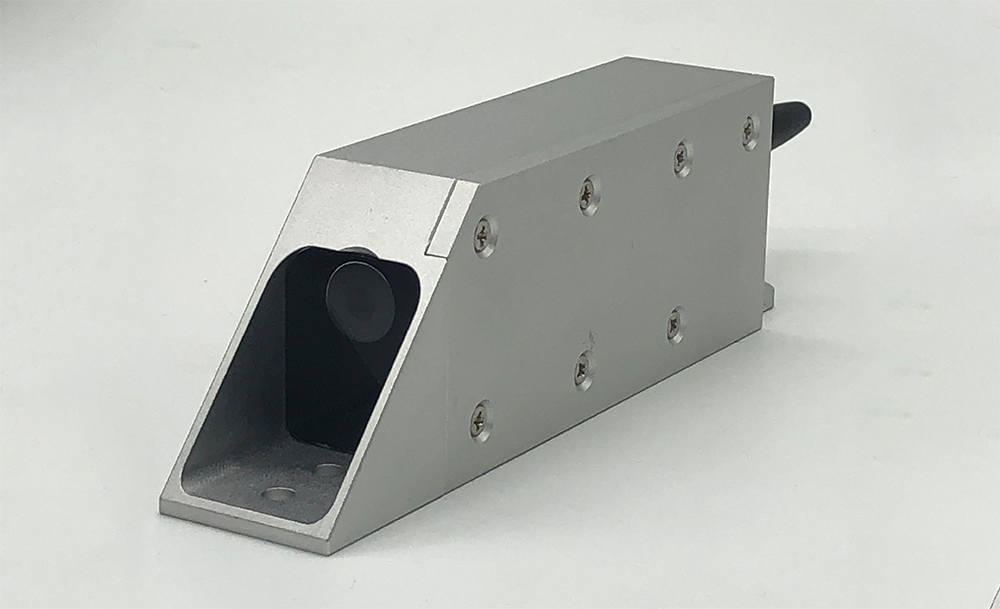

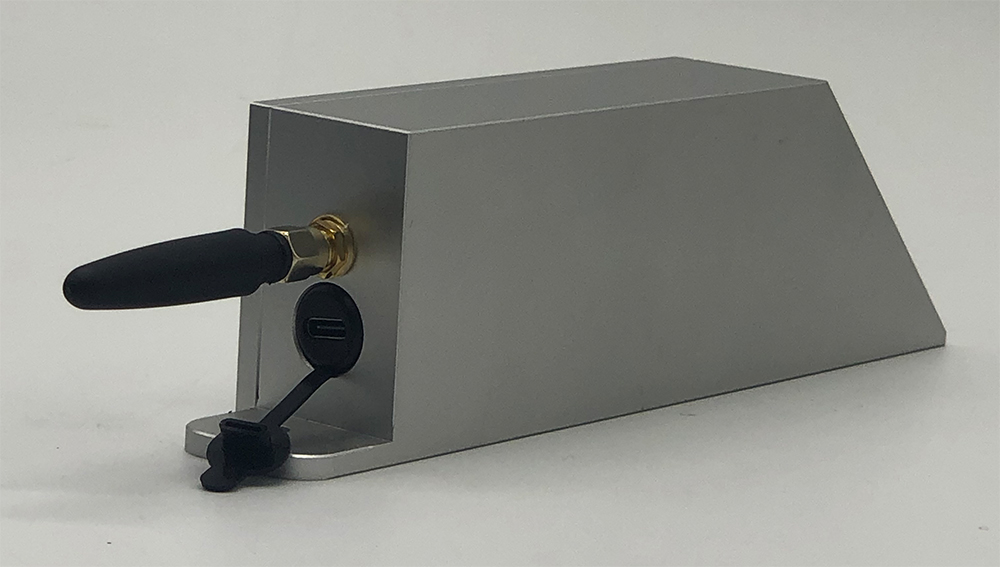

Silver forkbar Camera |
Sensor |
1/2.9” color cmos |
|
Pixcel |
1920x1080 (HxV) |
|
|
Resolution |
720P |
|
|
Min. Lux |
1lux |
|
|
Waterproof Level |
IP69K |
|
|
Shockproof level |
5G |
|
|
Power input |
5V |
|
|

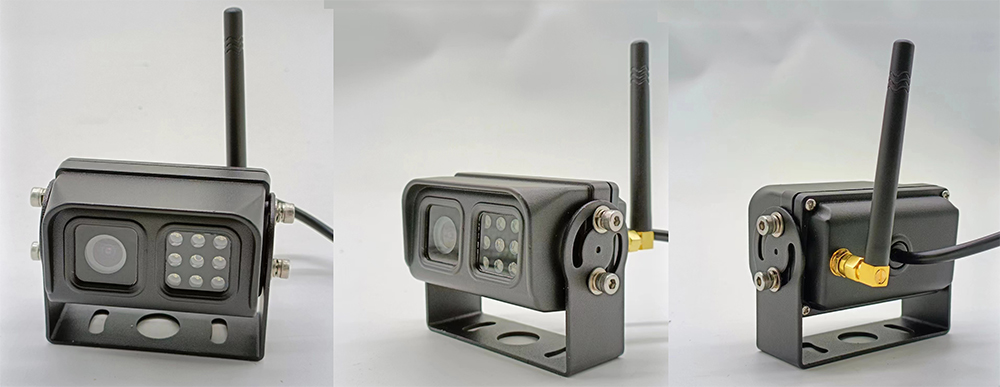

Black rear camera |
Sensor |
1/2.9” color cmos |
|
Pixcel |
1920x1080 (HxV) |
|
|
Resolution |
720P |
|
|
Min. Lux |
1lux |
|
|
Waterproof Level |
IP69K |
|
|
Shockproof level |
5G |
|
|
Power input |
12V |
