4G GPS MDVR
SD Type 3G Car DVR Model: BD-301W
This is a mini size 3G mobile DVR, The DVR works with WCDMA network, support live monitoring in office, we offer free CMS client sotware. and it support 1pcs max. 128GB sd memory, or external 500GB HDD.
- Details
Features
>3G network based on WCDMA
>Free CMS client and Server software
>H.264 compression at D1 resolution
>Max. 128GB sd memory or external 500GB HDD.
>Standard AVI file format and FAT32 file system, compatible with third party player.
>Reliable power management, wide voltage: +8VDC~+40VDC.
>3G/WIFI/GPS function optional
>3G network based on WCDMA
>Free CMS client and Server software
>H.264 compression at D1 resolution
>Max. 128GB sd memory or external 500GB HDD.
>Standard AVI file format and FAT32 file system, compatible with third party player.
>Reliable power management, wide voltage: +8VDC~+40VDC.
>3G/WIFI/GPS function optional
>Compact size & lightweight for easy installation.
Front and back panel
3G set up menu

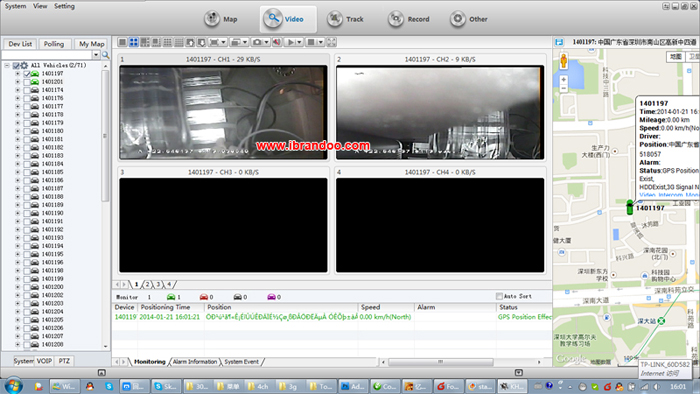

Free CMS client for 3G live monitoring
Specifications:
| Item | Parameter | Description | |
| System | Language | Chinse Simplified/Chinese Traditional/English/Japanese | |
| Interface | Graphical User Interface | ||
| Security | Administor and user password protected | ||
| Video | Video Input | 1/2/4 channel video input, 1.0V,p-p,75Ω,BNC | |
| Video Output | 1 channel vidoe output, 1.0V,p-p,75Ω,BNC | ||
| Display | 1/2/4 channel display | ||
| Video Standard | PAL (25fps) NTSC (30fps) | ||
| Audio | Audio Input | 1/2/4 channel audio input, 20KΩ,RCA | |
| Audio Output | 1 channel audio output, 500Ω,RCA | ||
| Output level | 1V ~2V, p-p | ||
| Recording mode | Audio and video synchonize | ||
| Compression | AAC | ||
| Storage | Video Compression | H.264 High Profile | |
| Resolution | D1 at 100fps | ||
| Video bitrate | D1: 200Kbps ~ 2Mbps | ||
| Audio bitrate | 8KB/s | ||
| Storage | SD card,USB2.0 port(For flash disk or hard drive) | ||
| Format | AVI | ||
| Sensor | Sensors | 1 speed sensor, 1 ignition sensor, 3 common use senseors | |
| Communication | COM | Two RS232 connector and one RS485 connector | |
| Network | RJ45,10M/100M Lan port | ||
| GPS | supported | ||
| Software | Player | ||
| 3 rd party player | VLC media player,Storm player,WINAMP | ||
| Firmware update | Via SD card orUSB disk | ||
| Power | Power input | DC:+8V ~ +32V | |
| Power output | +12V@1.5A;+5V@1A | ||
| Power consumption | Less than 5W ;less than 0.1W in standby mode | ||
| Working temperature | -10 ~ +60 | ||
| Size | 9.2CM ( Width ) ×2.0CM ( Height ) ×11.5CM ( Depth ) | ||
