Bus/taxi camera

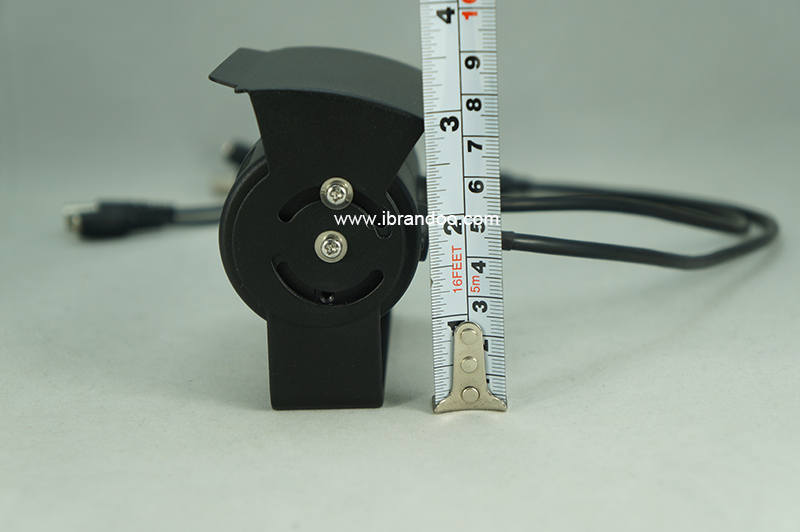

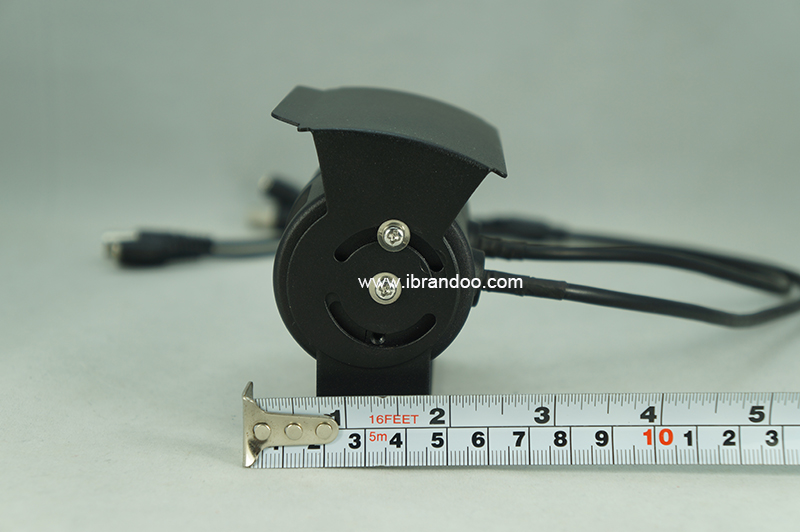

Dual lens Car camera Model CAM-052
This is a METAL housing,DUAL LENS car camera works in 12V only. Users available to turn camera view direction by self.
- Details
Features:
> SONY CCD, 700TVL (2pcs)
> Metal housing cased
> IR night vision
> Any view direction supported
Free view direction adjustable
Specifications:
Item
Data
TV System
PAL/NTSC
Picture Elements
976 Hx 582V
Horizontal Resolution
700TVL
Sensitivity
0 Lux at F1.2 (Infrared LED On)
Scanning System
625TVL
2:1 Interlace
Synchronization
Internal
Infrared Spectrum
850nm
S/N Ratio
More than 50 dB, (AGC Off)
Auto Gain Control (AGC)
Auto
White Balance
Auto
Electronic Shutter
Auto
Back Light Compensation
Auto
Infrared LED
12 LEDs
Infrared LED Range
8m
Video Output
1 Vp-p, 75Ωcomposite , 4 Pin Din
Audio Output
Option
Mirror
N/A
Gamma Ratio
0.45
Lens
F3.6mm Standard Lens
Exterior Focus Adjustment
N/A
Lens Mount
M12XP0.5mm Thread
Pan Adjusting
0-360°
Tilt Adjusting
0-40°
Power Supply
12V DC ±10%
Power Consumption
220mA
Dimensions (L X W X H)
95 x 60 x 85mm
Net Weight
480g
Operating Temperature
-25°C to +70°C
