Bus/taxi camera

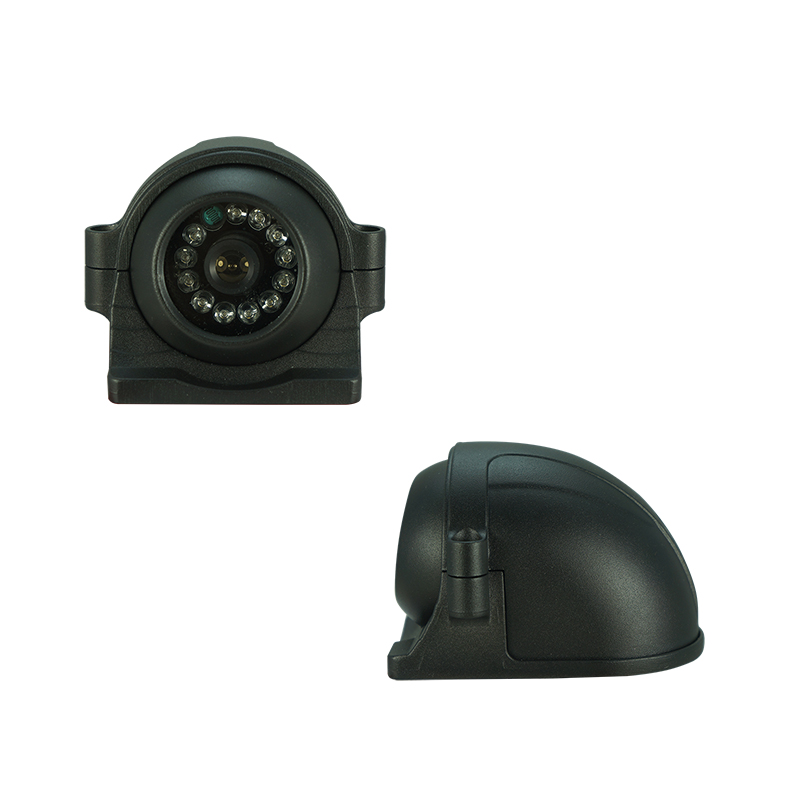

Side view Car DVR Model BD-S689
This is a METAL housing side view car camera works in 12V only. Users available to turn camera view direction by self.
- Details
Features:
> SONY CCD, 700TVL
> Metal housing cased
> IR night vision
> Any view direction supported
Specifications:
| Item | Data |
|
|
|
| TV System | PAL/NTSC |
| Picture Elements | 976 Hx 582V |
| Horizontal Resolution | 700TVL |
| Sensitivity | 0 Lux at F1.2 (Infrared LED On) |
| Scanning System | 625TVL |
| 2:1 Interlace | |
| Synchronization | Internal |
| Infrared Spectrum | 850nm |
| S/N Ratio | More than 50 dB, (AGC Off) |
| Auto Gain Control (AGC) | Auto |
| White Balance | Auto |
| Electronic Shutter | Auto |
| Back Light Compensation | Auto |
| Infrared LED | 12 LEDs |
| Infrared LED Range | 8m |
| Video Output | 1 Vp-p, 75Ωcomposite , 4 Pin Din |
| Audio Output | Option |
| Mirror | N/A |
| Gamma Ratio | 0.45 |
| Lens | F3.6mm Standard Lens |
| Exterior Focus Adjustment | N/A |
| Lens Mount | M12XP0.5mm Thread |
| Pan Adjusting | 0-360° |
| Tilt Adjusting | 0-40° |
| Power Supply | 12V DC ±10% |
| Power Consumption | 220mA |
| Dimensions (L X W X H) | 65 x 90 x 85mm |
| Net Weight | 285g |
| Operating Temperature | -25°C to +70°C |
|
|
|
